Templates

To make it easier to add several similar dataflows (e.g. 30 machines of the same type), you can also make use of .yaml templates in the flows ui. In the menu in the top right corner on the flows page, you can both export your current configuration as a template and upload a template to add a bunch of connectors and data mappers in one go.

Exporting a template​

After configuring your system you can export it to a .yaml template. The templates are capable of saving the connectors and the data mappers with all their properties, transformations and mappings aswell as all the nodes you made in the Reniway OPC UA Server.

You can download a template through the menu in the top right corner of the flows page.

Flows Menu

Creating a Template​

Imagine the following example: you have a machine that publishes all its data to MQTT but you want to publish all data to OPC UA.

The machine publishes its data to the topic machine/data like so:

{
  temperature: 23.241
}

The OPC UA address space will look like this:

Objects
├ Aliases
├ IoTDevices
├ Machine
│ └ Temperature
└ Server
Types
Views

The data will be published in a new folder named Machine inside of Objects which represents your machine.

OPC UA Server​

Nodes can be added to the Reniway OPC UA server under opcua.

# The OPC UA Server

opcua:
  nodes:
  - browseName: 0:Root
    displayName: Root
    children:
    - id: 0
      browseName: 0:Objects
      displayName: Objects
      typeDefinition: 0:FolderType
      referenceType: 0:HasComponent
      children:
      - id: 1                         # Define a folder to represent
        browseName: 2:Machine         # your machine
        displayName: Machine
        typeDefinition: 0:FolderType
        referenceType: 0:HasComponent
        children:
        - id: 2                                  # Define a variable to
          browseName: 2:Temperature              # store the machine
          displayName: Temperature               # temperatures
          typeDefinition: 0:BaseDataVariableType
          referenceType: 0:HasComponent
          dataType: 0:Double
          children: []
  namespaces:
  - id: 0
    uri: http://opcfoundation.org/UA/
  - id: 2
    uri: http://reniver.eu/UA/Reniway/Instance

Connectors​

Connectors are defined under connectors.

# Defining Connectors

connectors:
- name: Example MQTT Connector # Define a field connector to connect
  properties:                  # to the machine and a property to
  - id: 1                      # capture the temperature
    name: Temperature
    topic: machine/data
    jSONPath: temperature
    direction: Input
    type: double
  settings:
  - key: host        # Add the correct host name and port to connect to
    value: localhost # the MQTT broker
  - key: port
    value: 1883
  - key: useTls
    value: false
  - key: useAuthentication
    value: false
  startup: true
  type: MQTT
  connectorCategoryType: Field
- name: Reniway OPC UA Server # Define an enterprise connector to connect
  properties:                 # to the Reniway OPC UA Server and a property
  - id: 2                     # to publish the temperature
    name: Temperature
    valueFromDataMapperPropertyId: 1 # Receive value from data mapper
    nodeId: 2
    direction: Output
    type: double
  settings: []
  startup: true
  type: ReniwayOPCUA
  connectorCategoryType: Enterprise

Data Mappers​

Data Mappers are defined under dataMappers.

# Defining a Data Mapper

dataMappers:
- name: Machine                     # Define a data mapper to represent
  properties:                       # your machine
  - name: Temperature
    valueFromConnectorPropertyId: 1 # Receive value from field connector
    type: double

Full Template​

After putting everything together the full template will look like this:

# The full .yaml file

opcua:
  nodes:
  - browseName: 0:Root
    displayName: Root
    children:
    - id: 0
      browseName: 0:Objects
      displayName: Objects
      typeDefinition: 0:FolderType
      referenceType: 0:HasComponent
      children:
      - id: 1
        browseName: 2:Machine
        displayName: Machine
        typeDefinition: 0:FolderType
        referenceType: 0:HasComponent
        children:
        - id: 2
          browseName: 2:Temperature
          displayName: Temperature
          typeDefinition: 0:BaseDataVariableType
          referenceType: 0:HasComponent
          dataType: 0:Double
          children: []
  namespaces:
  - id: 0
    uri: http://opcfoundation.org/UA/
  - id: 2
    uri: http://reniver.eu/UA/Reniway/Instance
connectors:
- name: Example MQTT Connector
  properties:
  - id: 1
    name: Temperature
    topic: machine/data
    jSONPath: temperature
    direction: Input
    type: double
  settings:
  - key: host
    value: localhost
  - key: port
    value: 1883
  - key: useTls
    value: false
  - key: useAuthentication
    value: false
  startup: true
  type: MQTT
  connectorCategoryType: Field
- name: Reniway OPC UA Server
  properties:
  - id: 2
    name: Temperature
    valueFromDataMapperPropertyId: 1
    nodeId: 2
    direction: Output
    type: double
  settings: []
  startup: true
  type: ReniwayOPCUA
  connectorCategoryType: Enterprise
dataMappers:
- name: Example Data Mapper
  properties:
  - name: Temperature
    valueFromConnectorPropertyId: 1
    type: double

Uploading the template​

After saving the template to a yaml file you can upload the template through the menu in the top right corner of the flows page.

Flows Menu

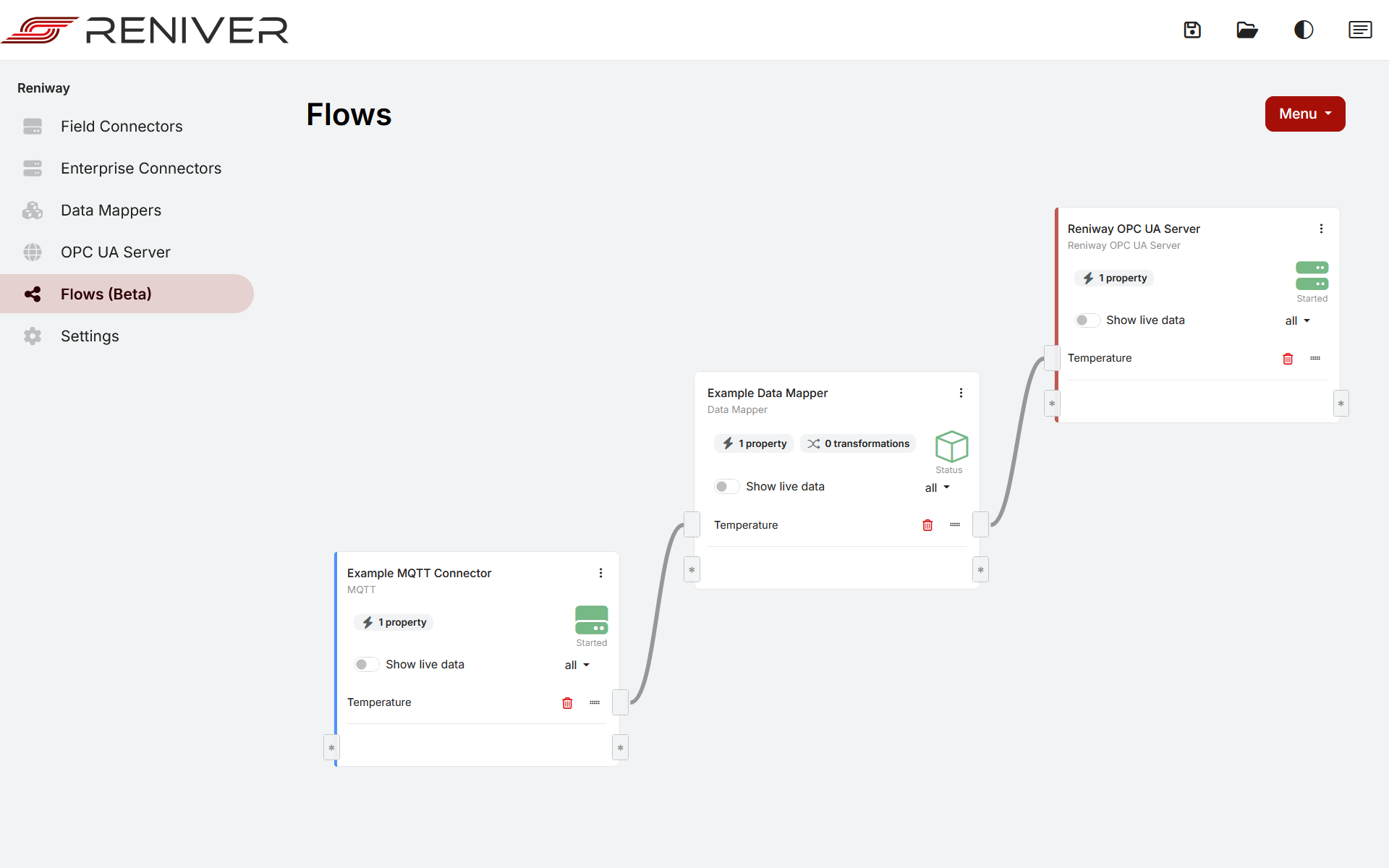

After uploading the template all the connectors, the data mapper and the properties will be created and connected.

Template Example

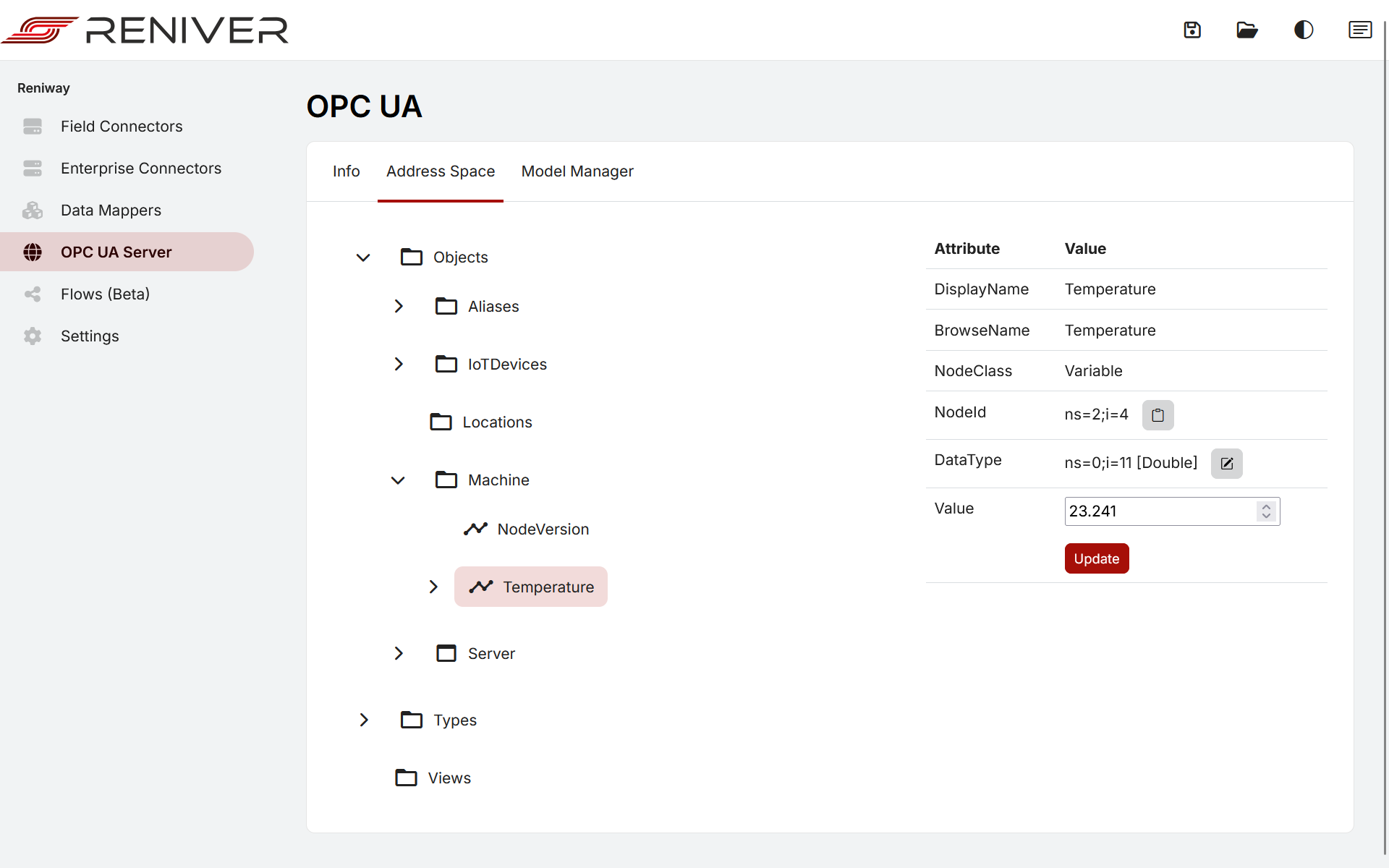

In the Reniway OPC UA server all the nodes will also be created and the data will be written.

Template Examle Adress Space
